Oil & Debris Blocker



Stop Pollutants Before They Can Reach Stormwater Outflow

See Video

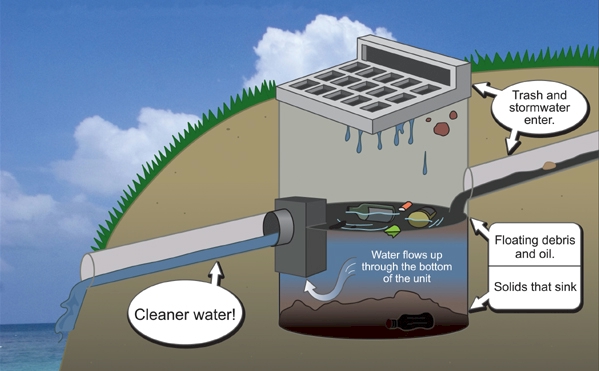

  • Stormwater is forced to flow through bottom of unit — floating trash and hydrocarbons remain on the water’s surface and out of the outflow.

  • Installs quickly and easily in storm drain outflows.

  • Low-profile allows Vactor trucks to clean catch basin without removing the unit.

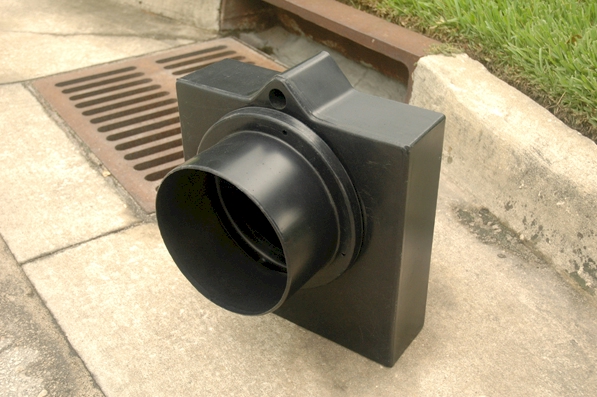

  • Dual component, all-polyethylene unit will not rust or corrode.

  • Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.





OIL & DEBRIS BLOCKER

Part# 9380

8” (204 mm) Center Opening

4 1/2” X 12” X 14”
(115 mm x 305 mm x 356 mm)

4 lbs. (2 kg)

Part# 9381

10” (254 mm) Right Opening

5 1/2” X 14” X 16”
(140 mm x 356 mm x 407 mm)

6 lbs. (3 kg)

Part# 9382

10” (254 mm) Center Opening

5 1/2” X 14” X 16”
(140 mm x 356 mm x 407 mm)

6 lbs. (3 kg)

Part# 9383

10” (254 mm) Left Opening

5 1/2” X 14” X 16”
(140 mm x 356 mm x 407 mm)

6 lbs. (3 kg)

Part# 9384

12” (305 mm) Center Opening

6 1/2” X 16 3/8” X 18”
(166 mm x 416 mm x 458 mm)

7 lbs. (3 kg)

Part# 9386

10” (254 mm) Adapter

9 1/2” X 10” X 12”
(242 mm x 254 mm x 305 mm)

2 lbs. (1 kg)

Part# 9387

12” (305 mm) Adapter

11” X 12” X 12”
(280 mm x 305 mm x 305 mm)

3 lbs. (1.5 kg)

Note: Adapter is required for any 10” and 12” Ultra-Oil & Debris Blocker installation. 8” unit is one piece.

Compliance:  40 CFR 122.26
Instructions

Click here to see a case study done in the City of Vancouver, WA


More photos:
