Inlet Guard

Ultra-Inlet Guard® and Ultra-Inlet Guard Plus


Protect Drains and Inlets

WITHOUT Lifting Any Grates

  • Keeps dirt, sand, sediment, trash and debris out of drains.

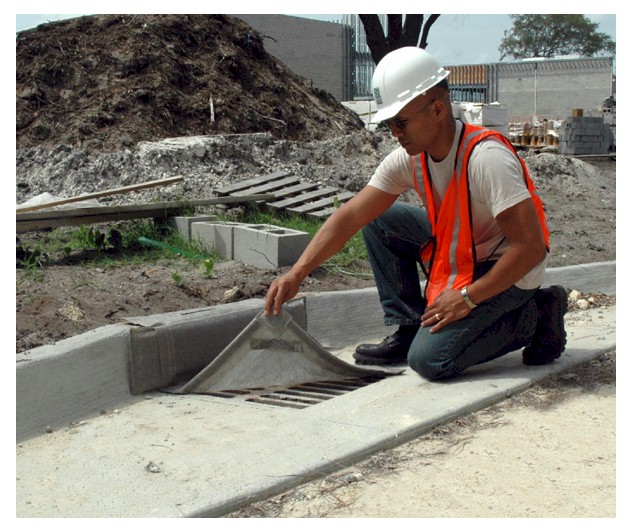

  • Quick and easy installation using built-in magnets — no more lifting of heavy catch basin grates.

  • Available in several sizes for street drains, combination drains and trench drains. Custom sizes also available.

  • Heavy-duty, reinforced material allows up to 192 gal/ft2/min. through drains.

  • Low profile design can be driven over and is unobtrusive to traffic and personnel.

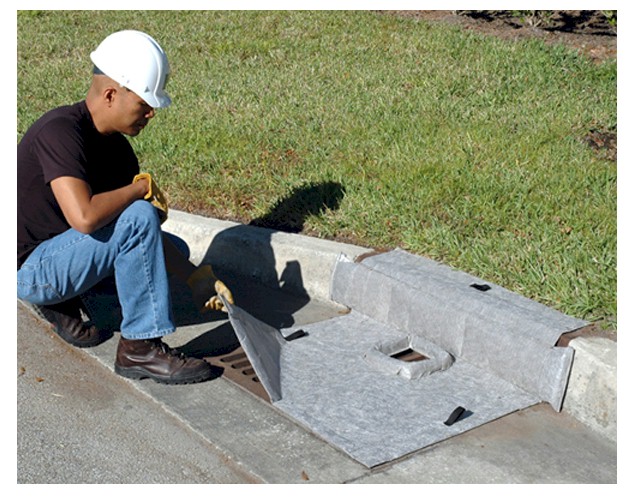

  • Ultra-Inlet Guard Plus also available. Includes built-in overflow port to help prevent flooding and/or ponding during heavy rainfall.

  • Oil & Sediment Models include replaceable layer of oil-absorbent X-TEX material to help remove oil and other hydrocarbons from stormwater flow.

  • Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.



U.S. Patent Pending

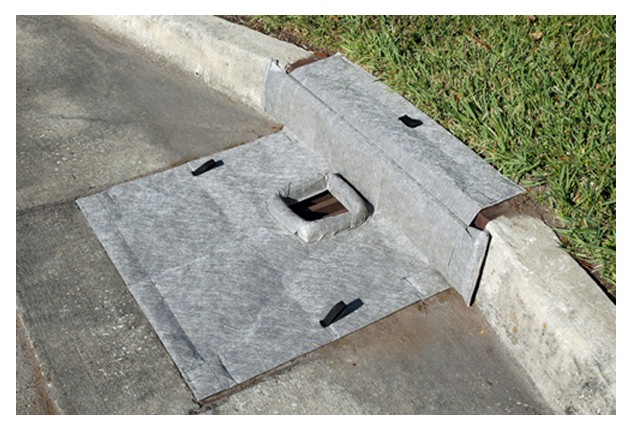

Bypass port in New

Ultra-Inlet Guard Plus

prevents ponding.



ULTRA-INLET GUARD (No overflow port)

Part# 9170

Sediment Only Model, 24” x 24” (610 mm x 610 mm)

Part# 9171

Sediment Only Model, 24” x 36” (610 mm x 915 mm)

Part# 9172

Sediment Only Model, 24” x 48” (610 mm x 1,220 mm)

Part# 9173

Sediment Only Model, 24” x 24” (610 mm x 610 mm) Curb-Style (for combination drains)

Part# 9174

Sediment Only Model, 24” x 36” (610 mm x 915 mm) Curb-Style (for combination drains)

Part# 9175

Sediment Only Model, 24” x 48” (610 mm x 1,220 mm) Curb-Style (for combination drains)



ULTRA-INLET GUARD PLUS (includes built-in overflow port)

Sediment Only Models

Part# 9160

Sediment Only Model, 24” x 24” (610 mm x 610 mm)

Part# 9161

Sediment Only Model, 24” x 36” (610 mm x 915 mm)

Part# 9162

Sediment Only Model, 24” x 48” (610 mm x 1,220 mm)

Part# 9163

Sediment Only Model, Curb-Style (for combination drains)

24” x 24” (610 mm x 610 mm)

Part# 9164

Sediment Only Model, Curb-Style (for combination drains)
24” x 36” (610 mm x 915 mm)

Part# 9165

Sediment Only Model, Curb-Style (for combination drains)
24” x 48” (610 mm x 1,220 mm)



Part# 9191



Sediment Only Model, Trench Grate Style,

14” x 36” (356 mm x 915 mm)

Oil & Sediment Models

Part# 9124

Oil & Sediment Model, 24” x 24”
(610 mm x 610 mm)

Part# 9125



Oil & Sediment Model, 24” x 36”
(610 mm x 915 mm)

Part# 9126



Oil & Sediment Model, 24” x 48”
(610 mm x 1,220 mm)

Part# 9127

Oil & Sediment Model, Curb-Style
(for combination drains)
24” x 24” (610 mm x 610 mm)

Part# 9128



Oil & Sediment Model, Curb-Style
(for combination drains)
24” x 36” (610 mm x 915 mm)

Part# 9129



Oil & Sediment Model, Curb-Style
(for combination drains)
24” x 48” (610 mm x 1,220 mm)

Part# 9193



Oil & Sediment Model, Trench Grate Style,
14” x 36” (356 mm x 915 mm)



Compliance:  40 CFR 122.26
Material Specifications
Download catalog page


More photos:

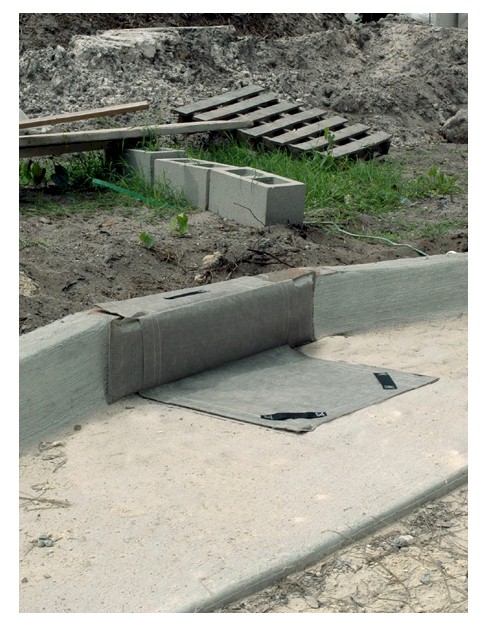

Ultra-Inlet Guard installed

   Ultra-Inlet Guard Plus installed
