HydroKleen Catch Basin Filter

Advanced Catch Basin Filter Captures Multiple Pollutants, Also Provides Sampling Capability

This BMP removes hydrocarbons, heavy metals, sediments and other organics from stormwater and industrial runoff.
Exceeds 80% sediment removal efficiency.

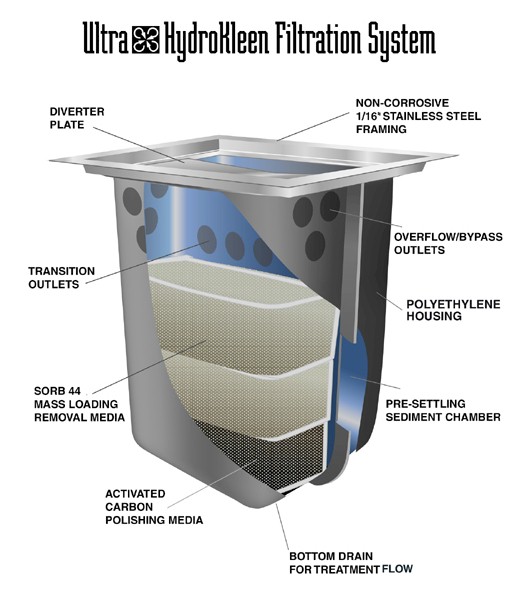

Patented filtration system allows different filter media to be used together to remove targeted pollutants.
Choose a mix of filters to removes hydrocarbons / oil, chemicals, odor, phosphorus and heavy metals from water flow.

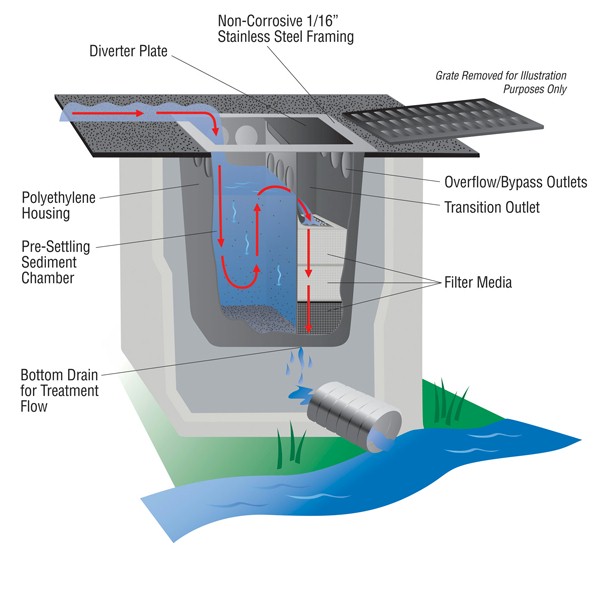

By-pass system prevents flooding or ponding during high-flow storm events.
Excellent post-construction control for drains that are more susceptible to large concentrations of contaminants (“Hot Spots”).
Units available for round or square catch basin grates. Custom sizes available.*.
Considered a “true filter” and has been verified by the EPA’s ETV program. Click here to download the report.
Helps comply with NPDES, 40 CFR 122.26 (1999) when used as Best Management Practice in Storm Water Pollution Prevention Plans.

Performance Verified By EPA Program

Mix and match filter media depending on your specific needs. HydroKleen is the only catch basin filter that allows you to use more than one type of filter media.*

Sorb 44 — Used to remove oil and other hydrocarbons.
Phos Filter — Excellent for removal of phosphorous.
Activated Carbon — Excellent “polishing media”. Helps remove certain chemicals, hydrocarbons and odors.
Heavy Metal Removal — Custom filter media blend helps remove zinc, lead, copper and other harmful, heavy metals.
Other types of media available for custom applications.

New Sampling Option
Convenient and effective means to obtain samples of the “post-treatment” effluent from the Ultra-HydroKleen to comply with monitoring and testing requirements.

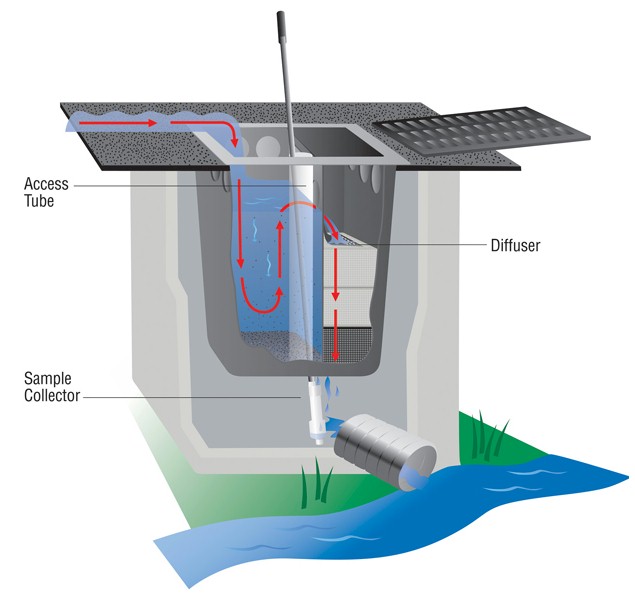

	NEW! Sampling Option provides standard HydroKleen with modifications to allow Sample Collector (sold separately) to pull “post-treatment” water samples from below the unit’s filters. Take real-time samples during storm events. Access Tube stays capped until a sample is desired. Simple sampling — No need to remove the Ultra-Hydrokleen to take a sample. Simply remove the grate, uncap the Access Tube, and insert the Sample Collector. Sample Collector has 60” long handle — makes collection quick and easy.

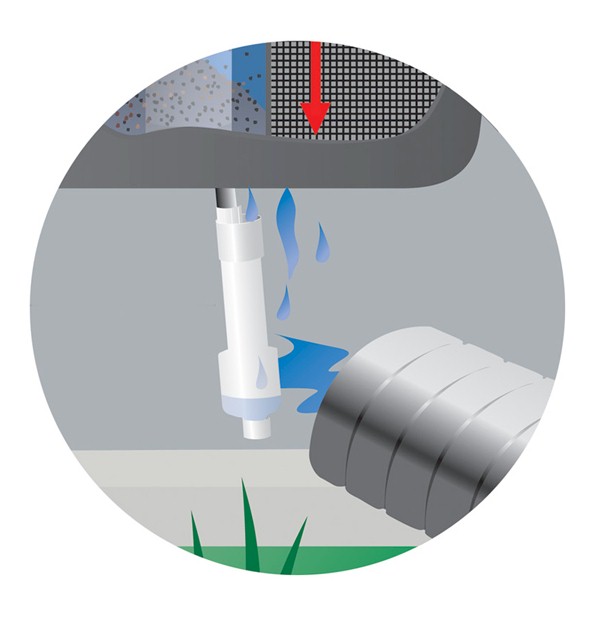

Close-up

ULTRA-HYDROKLEEN
Flat Frame*	Recessed Frame*	Fits Drains
Part# 9470	Part# 9473	20" – 25 ” (508 mm x 635 mm)
Part# 9471	Part# 9474	26” – 33” (660 mm x 838 mm)
Part# 9472	Part# 9475	34” – 48” (863 mm x 1,219 mm)
Part# 9478		Custom

Treatment flow rate: 35-40 GPM
Flow rate with by-pass: 160 CFM
Hydrocarbon Absorption Capacity: Minimum of 1 gallon
Options
Part# 9466 - Sampling Option
Part# 9467 - Sample Collector
Media*
Part# 9463 - Activated Carbon
Part# 9462 - Sorb 44
Part# 9461 - Phos Filter
Part# 9460 - Heavy Metal Removal

Compliance: 40 CFR 122.26
U.S. Patent No. 5,820,762. Other U.S. Patents Pending.
*Note: HydroKleen units are custom made to fit each individual catch basin. The final pricing is based on the configuration of the frame (Flat or Recessed) and number of required Filter Media (2 or 3). This cannot be determined until the end user has submitted the completed Measurement Instructions and Filter Media Selection forms. Please email or contact us at 904-327-1202 for more information.

Instructions
How to measure for HydroKleen
Filter media selection form
Installation instructions for HydroKleen
Installation instruction for HydroKleen replacement media
Maintenance and Care
Video
Video clip of HydroKleen in action (high-res)
Video clip of HydroKleen in action (low-res)
Specification Info.
Written specification
Spec Drawing (DWG)
Spec Drawing (PDF)
Reports
Testing report from EPA's ETV program
