Gator Guard

Reusable Sediment Control Wattle

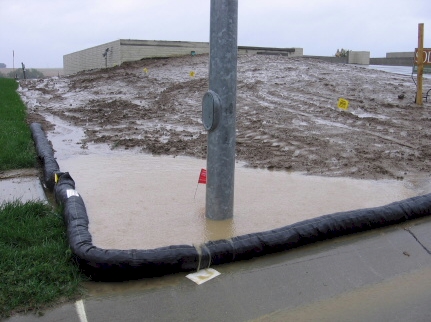

Durable and 98% Effective At Removing Sediment * Use in-place of silt fence or straw wattles * UV Resistant Geotextile stuffed with Recycled Foam * A 6-in Gator Guard wattle has 5-in of freeboard — same as a 9-in straw wattle in a 4-in trench



 SPECIFICATIONS
 Gator Guard Reusable Sediment Control Wattle
Model No. RSW625
Diameter 6-inch
Length 25-feet
Apron Width 8-inch
Connection Sleeve 12-inch (at one end)
Weight – Single Roll 8-pounds
            - Three Pack 25-pounds

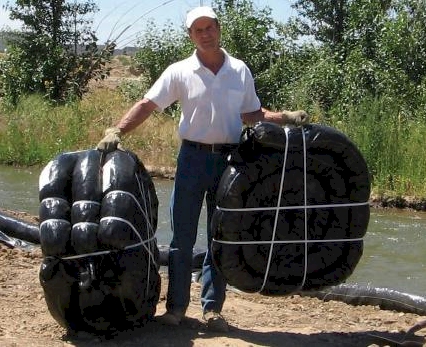

Dimensions – Single Roll 38-in diameter x 7-in thick
                - Three Pack 38-in diameter x 21-in thick
Fabric: - Material Woven polypropylene slit film
           - Type Ground Cover
           - Weight 3.2 oz./sq. yd.
           - Tensile Strength 175 x 110 lbs.
           - Burst 275 psi
           - Puncture 65 lbs.
           - Water Permeability 15-gpm/sf clean water
  <1-gpm/sf dirty water
           - UV % Strength 80% after 2400 hrs.
Thread UV Resistant Polyester
Foam Filler (recycled scrap) Closed cell polyethylene foam
Install Pins 4-in, 5-in, 6-in Cap Nails 14 included (in center of roll)
Alt. Install Pins 6-inch Landscape Staples 14 included (in center of roll) alternate
Alt. Install Pins - Big Nails with Washers Purchase Locally

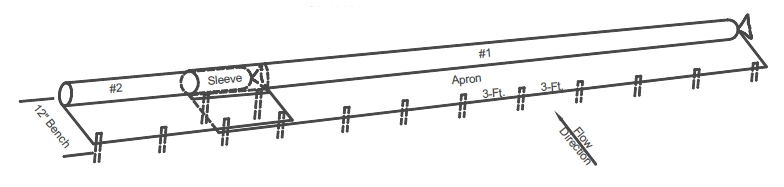

Installation Pin Spacing Every 3-feet
11-inch Cable Ties (for cut-to-length) 2 included (in apron below tag)

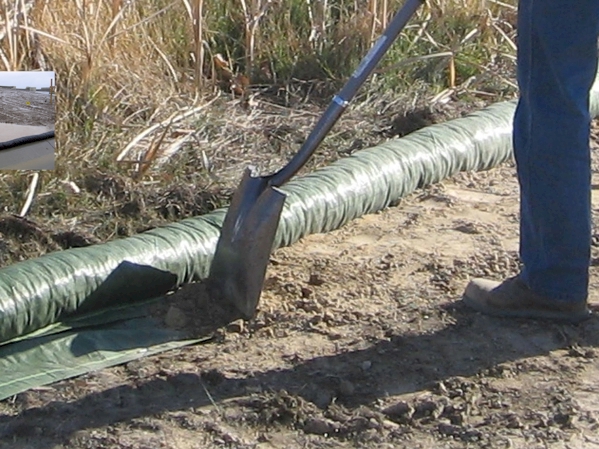

Cover apron w/ dirt (compact w/ feet) 1-inch of dirt minimum
Accidental cut repair Fill cut with caulking or replace
Functional Life (expected) 5 years (excludes major damage)
Soils Lab Testing San Diego State University - January 2008 click here to see the 19 second video
% Effective LA Basin 10 yr. storm Equiv. 98% effective for 3:1 slope
