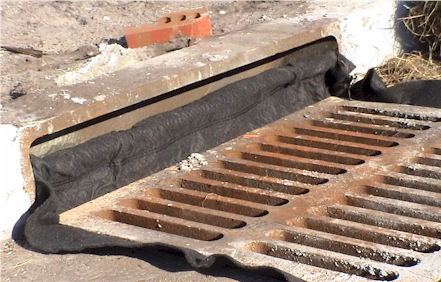

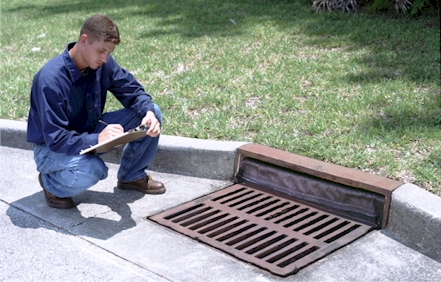

DrainGuard Curb-Insert Style

The Nations Best Selling Storm Drain Inlet Filter

Ultra-Drain Guard® Curb-Insert Style

Catch Basin Stormwater Filter

Other Drain Guards  Ultra-Drain Guard

Recycled Model   Reusable Model   Ultimate Model

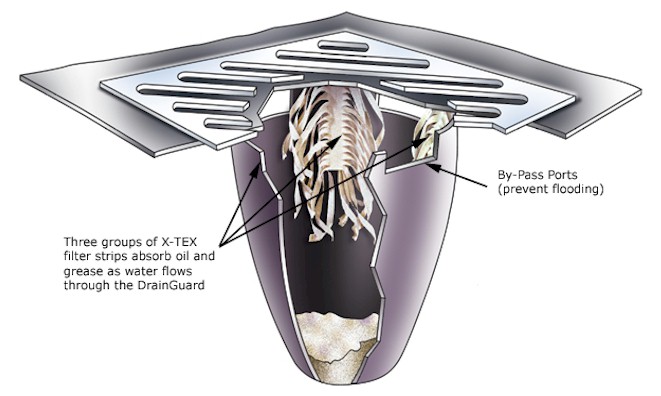

Captures Sediment, Nutrients, Oil, Trash & Debris and Numerous Additional Pollutants

REDUCES NUTRIENT LOADING... Captures Leaves, Grass Clippings and Organic Debris

  • For use with combination catch basins with a street grate and curb opening.

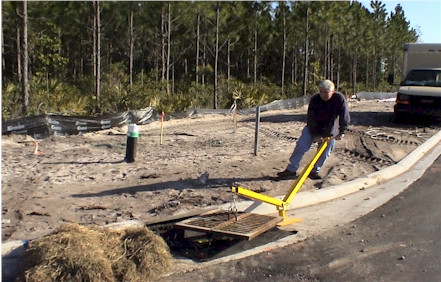

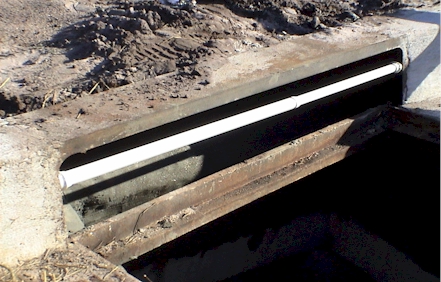

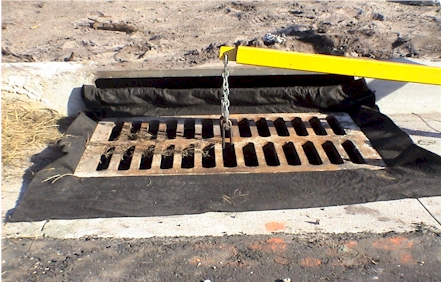

  • Heavy-duty tension rod secures Drain Guard inside curb inlet - stopping sediment and other contaminants from entering curb portion of storm drain.

  • Fits grate sizes up to 40" x 40" and curb inlets up to 60" wide.

  • Helps comply with NPDES, 40 CFR 122.26 (1999) when used as Best Management Practice in Storm Water Pollution Prevention Plans.

ULTRA-DRAIN GUARD, CURB-INSERT STYLE

Part # 9230:
Oil & Sediment Model, for curb inlets from
24" - 42" (610 mm x 1067 mm)
Part # 9231:
Oil & Sediment Model, for curb inlets from
42" - 60" (1067 mm x 1524 mm)
Part # 9239:
Oil & Sediment Plus Model, for curb inlets from 24" - 42" (610 mm x 1067 mm)
Part # 9240:
Oil & Sediment Plus Model, for curb inlets from 42" - 60" (1067 mm x 1524 mm)
Compliance:  40 CFR 122.26
Instructions
Material & Product Specifications  X-TEX Specifications
Drain Guard FAQs
Are Drain Guards Effective?
U.S. Patent No. 6,214,216; 5,372,714; 5,575,925; 6,632,501
