Curb Guard Plus®

Protect Curb Inlets From Sediment-Laden Stormwater Runoff

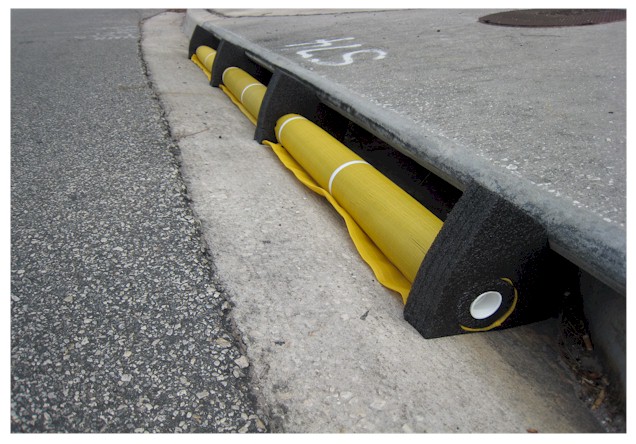

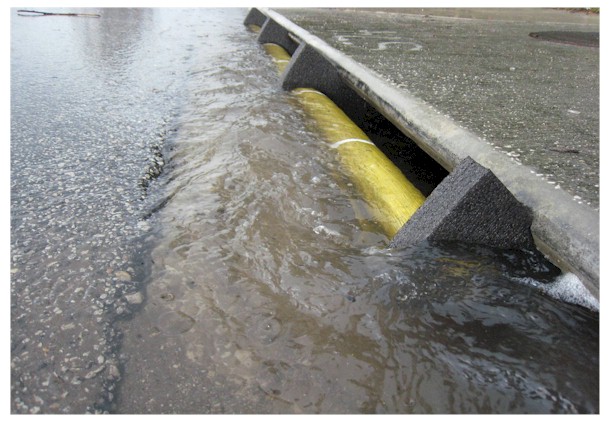

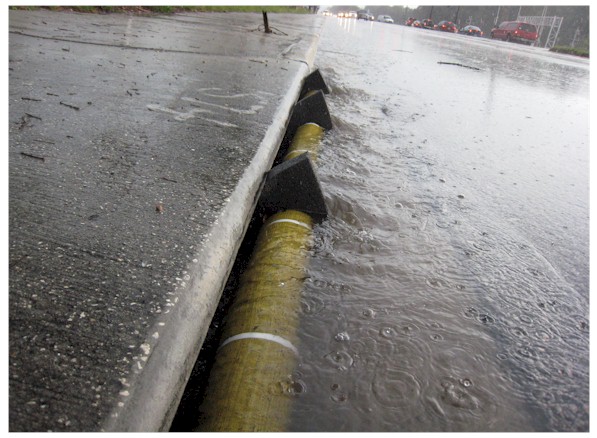

Modular design allows units to be connected to make any length desired
(3 units shown).

  • Quick and easy installation.

  • Modular design — build to any length.

  • Units can be quickly and easily connected to form longer lengths.

  • Wedge-shaped, heavy-duty foam secures unit in curb inlet.

  • Woven, polypropylene material provides high flow rate — will not cause ponding or flooding.

  • Helps comply with NPDES, 40 CFR 122.26 (1999).

CURB GUARD PLUS

Part # 9248 Dimensions: 4" dia. x 36"L (102 mm x 915 mm)
Part # 9251 Dimensions: 4" dia. x 48"L (102 mm x 915 mm)

Flow rate:  456 GPM (per section - when new)
Compliance:  40 CFR 122.26
Instructions
Download catalog page
U.S. Patent Pending

Additional Photos (Click To Enlarge)

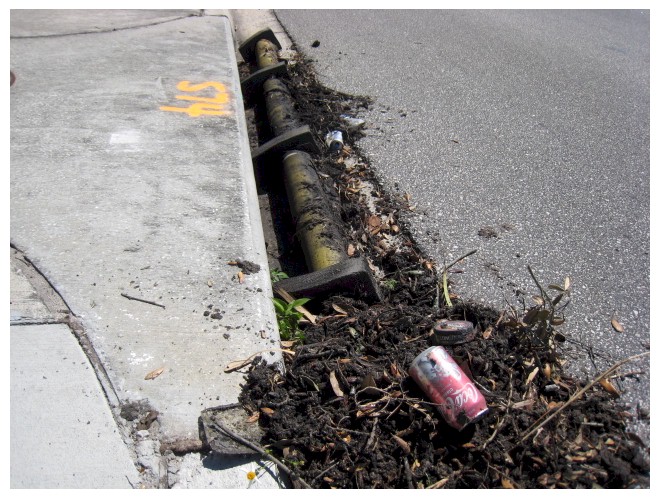

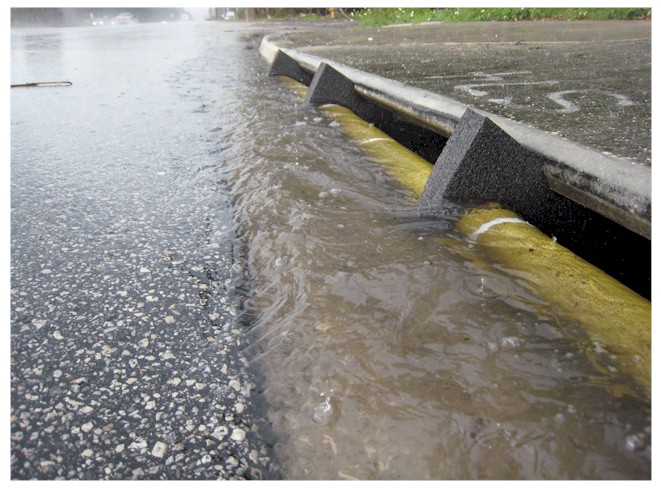

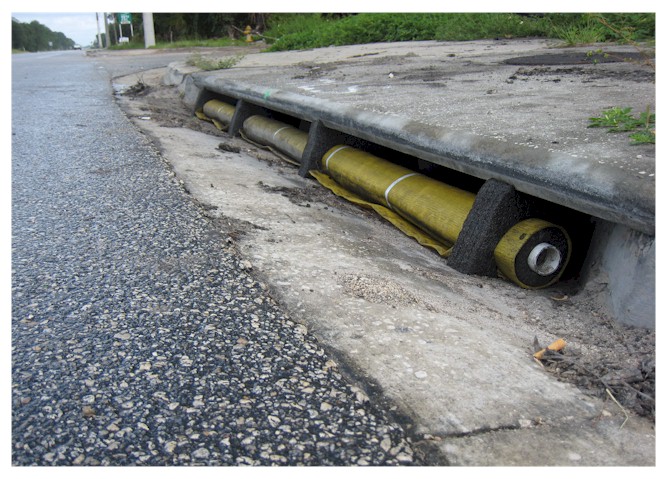

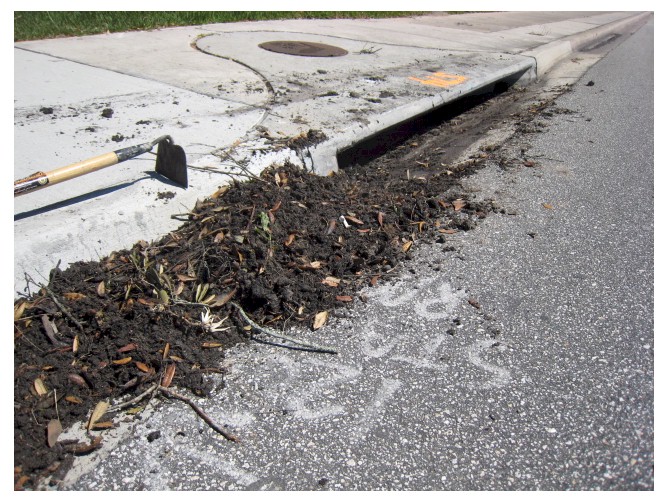

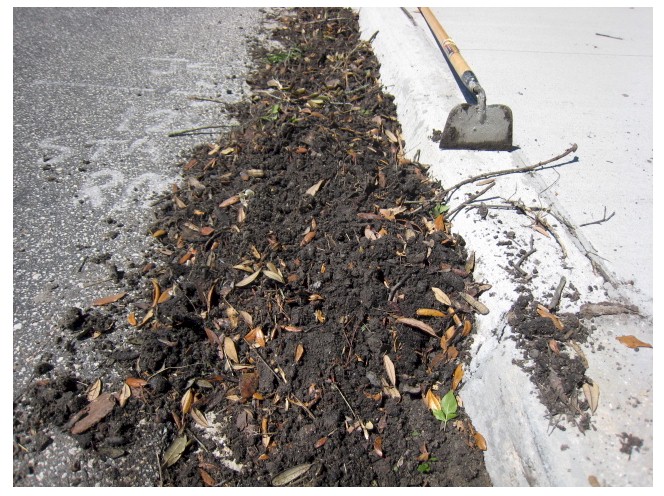

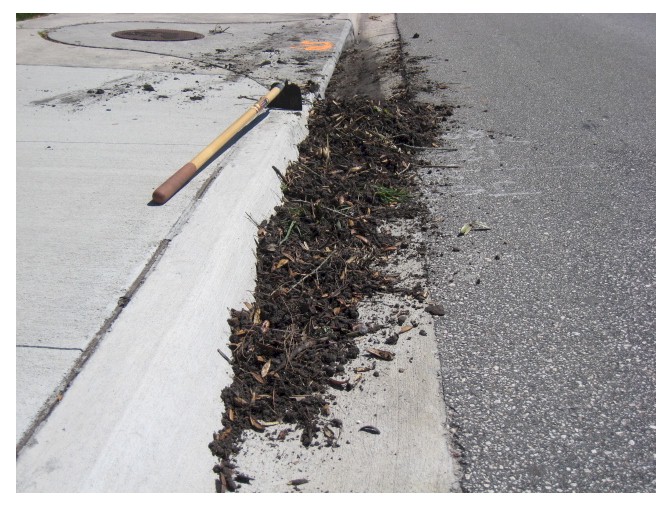

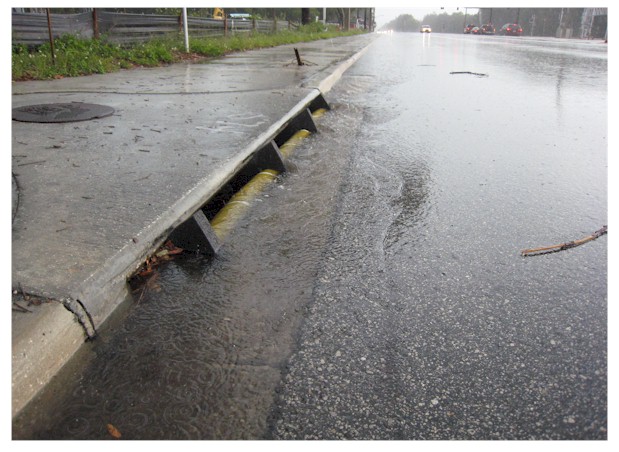

 Photos below taken at approx one year in the field. Debris reflects approx three months capture.
